Miniature suspended tramway

An electromechanical prototyping project exploring a small DC motor, transmission and suspended vehicle built with recovered materials.

The project combined motor construction, CAD and fabrication to build a miniature suspended vehicle. Iterative motor tests informed the final choice of drive system and highlighted constraints on mass, power and stability.

  • Mechanical Engineering
  • Electronics
  • Scale Modeling

Engineering brief

The brief called for a 9 V motor to move a suspended vehicle measuring approximately 20 × 15 × 15 cm, with a minimum mass of 250 g. Construction relied on recovered materials, with wire, magnets and electrical supplies provided by the school.

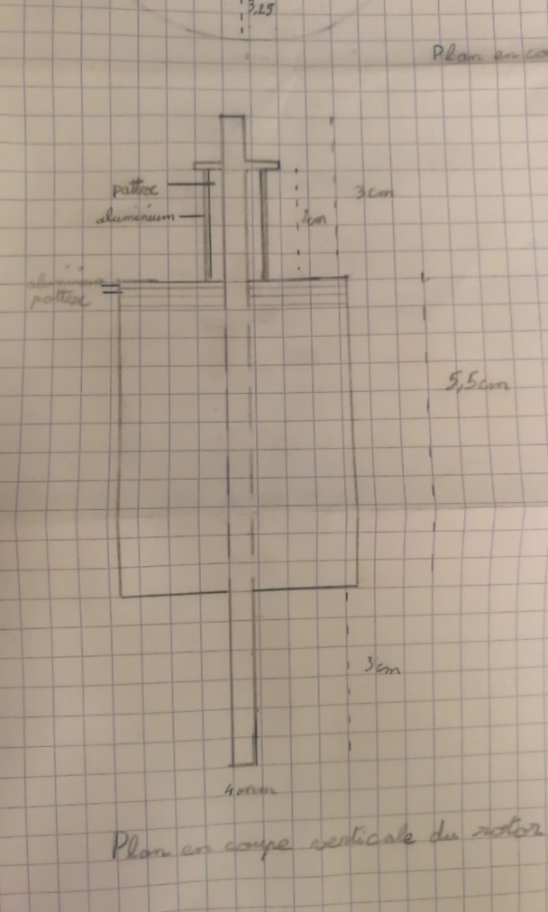

The initial motor design used a rotor made from aluminium elements and modelling resin. Fabrication involved reclaimed metal, magnets, copper windings and a manually constructed commutator.

Image placeholderminiature-suspended-tramway__image_01
Image placeholderminiature-suspended-tramway__image_02
Project videominiature-suspended-tramway__video_01

Motor iteration

The first rotor weighed 110 g and operated reliably only with fresh batteries. A second design used wooden rotor elements fixed to a threaded axle, with three wound branches and a commutator made from conductive blades.

The winding ends were stripped and connected to the commutator segments. This revision reduced the rotating mass and improved operation compared with the first version.

Image placeholderminiature-suspended-tramway__image_03

Test observations and transmission

The revised motor weighed 56 g, approximately half the mass of the first rotor, and used less battery power in the project’s tests. It remained too bulky and unstable for the vehicle, so the team adopted the school-provided motor for the final system.

The transmission used a pulley-and-toothed-belt arrangement. The vehicle and its attachment components were designed and fabricated around the suspended track.

Project videominiature-suspended-tramway__video_02
Image placeholderminiature-suspended-tramway__image_04
Image placeholderminiature-suspended-tramway__image_05
Image placeholderminiature-suspended-tramway__image_06

Mechanical integration

The vehicle combined custom supports, wheels and attachment parts with a front linkage using a pin and needle assembly. Components were finished and assembled into the suspended chassis.

The project’s main learning outcome was the relationship between motor construction and system integration: a motor that turns on the bench still needs to meet the vehicle’s stability, mass and transmission constraints.

Image placeholderminiature-suspended-tramway__image_07
