2020Image Processing

Image Processing Software

A C# and WPF application implementing image transformations, procedural graphics, steganography and QR-code processing.

Developed with Thomas Culino, this software project implements image-processing operations over custom pixel and bitmap representations. A WPF interface exposes the algorithms alongside a drawing module.

  • Image Processing
  • C# & WPF
  • Software Engineering

Project scope

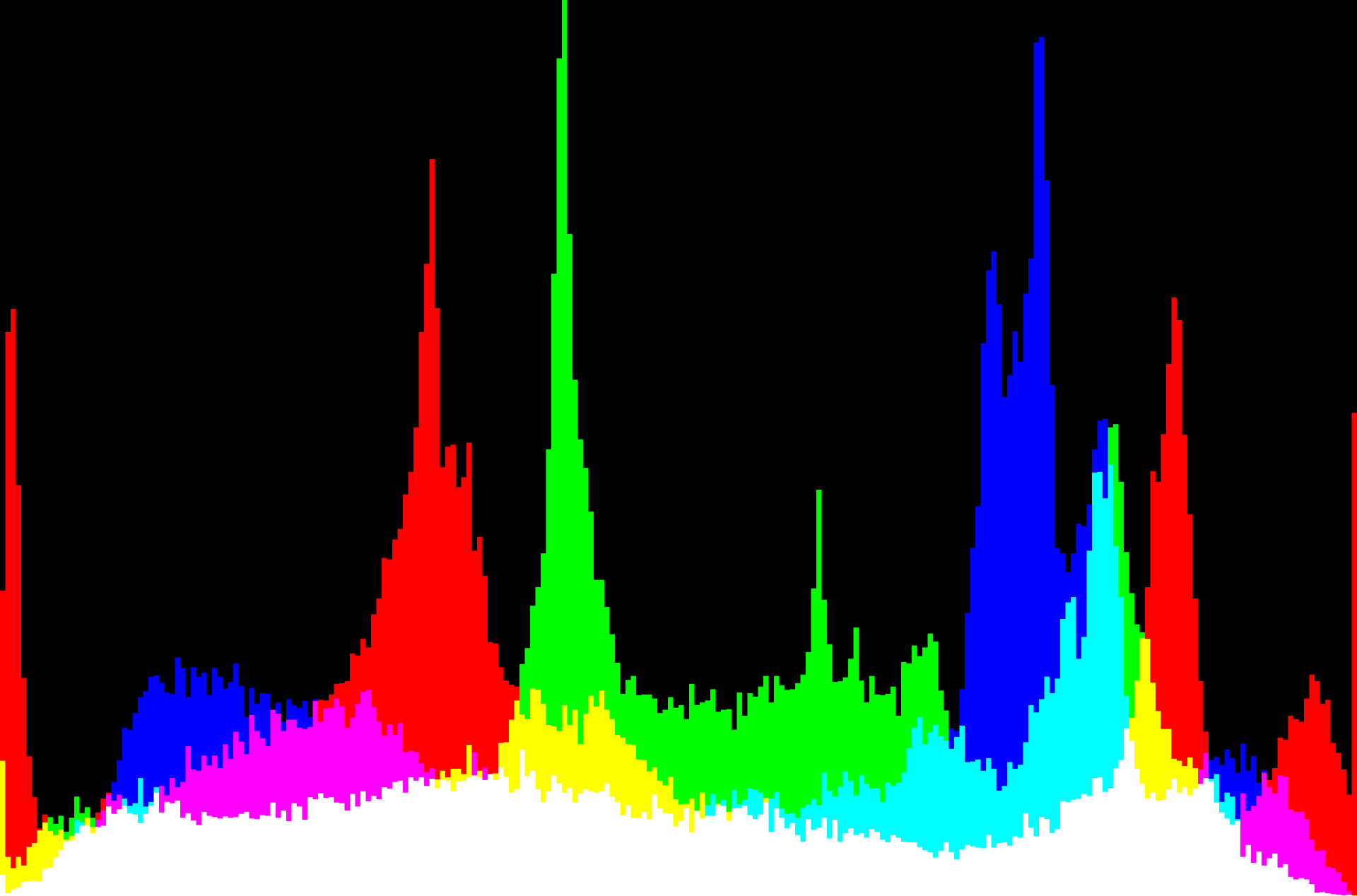

The application provides grayscale conversion, resizing, rotation, mirroring, convolution filters and colour and brightness histograms. It also generates Julia and Mandelbrot fractals, embeds one image within another using steganography, and generates and decodes QR codes.

The objective was to connect image representation, algorithm implementation and a graphical interface in a single C# application. The examples below illustrate outputs from the implemented operations.

Image placeholderimage-processing-software__image_01
Image placeholderimage-processing-software__image_02
Image placeholderimage-processing-software__image_03
Image placeholderimage-processing-software__image_04
Image placeholderimage-processing-software__image_05

Representation and software architecture

A custom Pixel class stores colour channels. MyImage represents an image as a two-dimensional pixel matrix together with its dimensions, file metadata and underlying bytes. Transformations operate on that representation before the result is exported.

The QRCode class implements version-1 QR-code generation and data retrieval. Generation places finder and timing patterns, inserts data according to the selected mask and enlarges the image for display. The decoding routine traverses the image representation to recover the encoded text.

The WPF interface provides access to the processing functions and file selection. A separate drawing window supports lines, rectangles and ellipses on a canvas, with RGB colour controls, image import and export.

Developed with Thomas Culino, the project provided practical experience in object-oriented architecture, bitmap formats, pixel-level algorithms and event-driven interface programming.
